B6neo Series

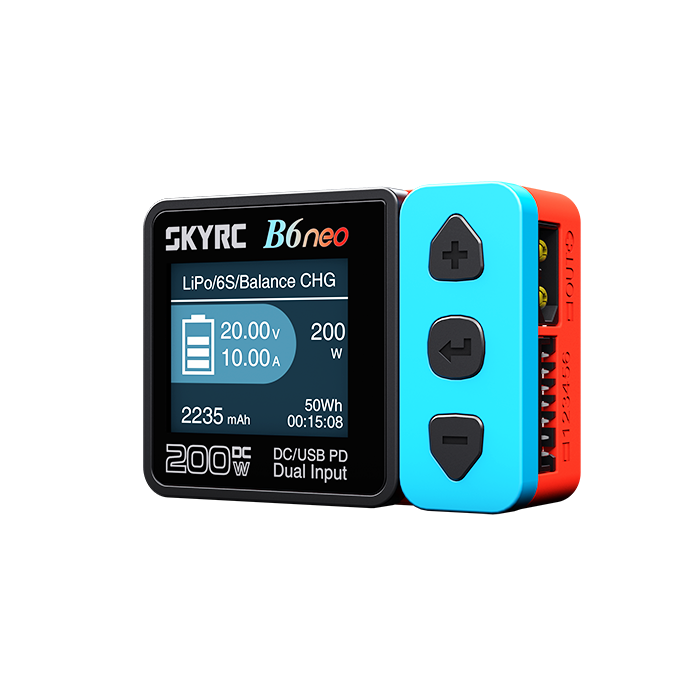

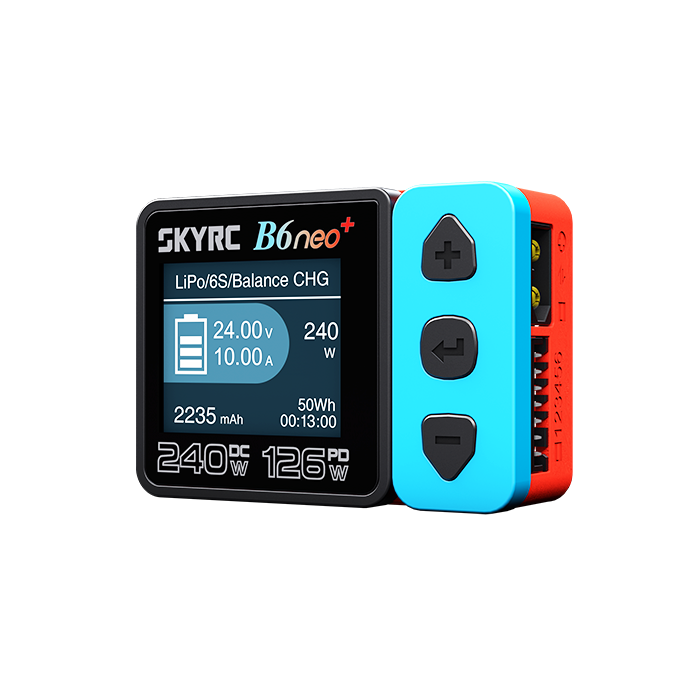

B6neo: SK-100198B6neo+: SK-100211

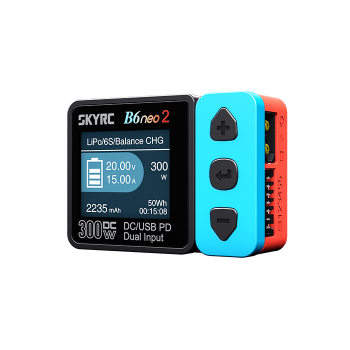

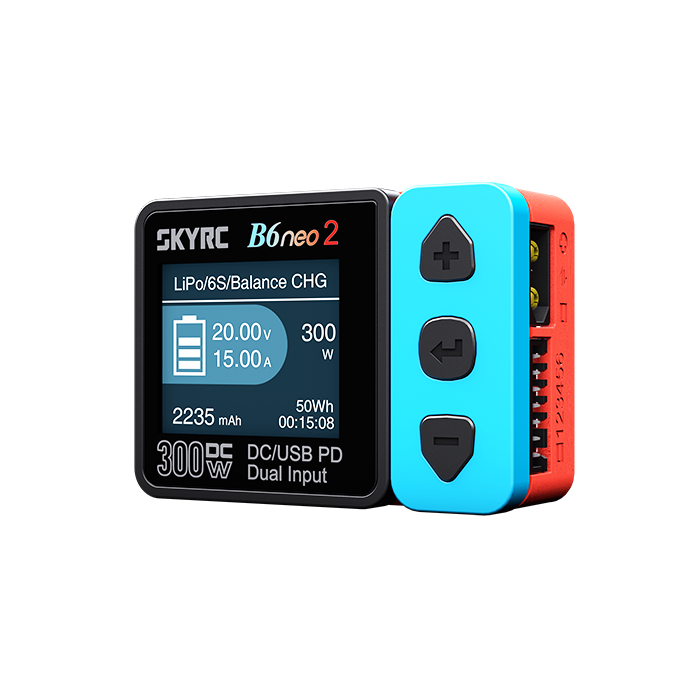

B6neo 2: SK-100225
Smart Charger
From Bold to Beautiful,
Perfect Blend of Fashion and Function.
Perfect Blend of Fashion and Function.
Stunning!
In every way.
In every way.
Crimson Sky
Mysterious Black
Sakura Blossom
Festive Gold
Crimson Sky
Mysterious Black
Crimson Sky
Mysterious Black
Teal Blue
Sakura Blossom
Charging should not be a chore!
With the two-tone body design and playful color options, Adds a touch of fun to your routine charging session.
Stand out in the racing field with a pop of color and impress other players with your unique personality. Choose from bold and bright or classic and subdued color schemes that perfectly match your style.
* For updates on other color options, please contact our distributor!
Be Legendary:
Innovation Evolved, Smaller than Credit Card
Innovation Evolved, Smaller than Credit Card
B6neo series reimagines the iconic iMax B6—now in a footprint smaller than a credit card.
Nearly 1/4 the size of the original, B6neo, B6neo+, and B6neo 2 pack serious power into sleek, colorful plastic shells.
While the classic B6 maxed out at 50W DC, the new B6neo series delivers up to 300W on DC and 80W via USB PD, bringing modern performance to your pit bench.
With PD input now essential for everyday convenience, the B6neo series leads the way once again.
Tiny & Shiny
with Amazing Power up to 300W
with Amazing Power up to 300W
Don't be fooled by the compact size—the B6neo Series packs a serious punch.
When powered by DC, these pocket-sized chargers deliver up to 300W2 at 15A3. Even via USB-C PD, they provide a solid 126W5 with ease.
Sharing the same ultra-compact footprint, the B6neo Series redefines what’s possible in portable charging.
Power, portability, and style—what more could you ask for?
XT60 &
Trendy PD input
Trendy PD input
SkyRC B6neo Series feature an XT60 interface as its DC input and a de-facto trendy Type-C PD7 input interface, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied
by Balance Port
by Balance Port
The built-in balance port enables B6neo Series chargers to discharge faster, allowing it to discharge at up to 29.5W6 when used in conjunction with the main port.
1
w
Discharging
B6neo and B6neo 2 are not only professional in charging but also versatile digital power supplies.
With just a few taps on the menu, they’re ready for your application—offering optimal voltage output from 5V to 27V in 0.1V increments.
• B6neo delivers adjustable current from 1A to 10A
• B6neo 2 pushes further with 1A to 15A output capacity
Short circuit, overload, and reverse polarity protection are all built-in, ensuring safe and reliable operation every time.
Made for each other.
OSH 6-Port 1S Lithium Battery Charging Hub
PDC 100W USB C GaN Charger
PSA100 Power Supply Adaptor
Any B6neo Series Charger.
Six 1S Batteries. Total Control.
Six 1S Batteries. Total Control.
Any B6neo Series Charger. Six 1S Batteries. Total Control.
Charge up to six micro LiPo packs safely and efficiently. From FPV whoops to ultra-light trainers, keep your fleet mission-ready.
Snap it into your B6neo—like a Transformer—and power up.
Choose your version:
PH2.0 — Widely compatible.
BT2.0 — Favored by FPV racers.
Charge up to six micro LiPo packs safely and efficiently. From FPV whoops to ultra-light trainers, keep your fleet mission-ready.
Snap it into your B6neo—like a Transformer—and power up.
Choose your version:
PH2.0 — Widely compatible.
BT2.0 — Favored by FPV racers.
GaN-Powered.Fast. Compact.
With USB-C output and a built-in Type-C cable, SkyRC PDC100 GaN Charger unlocks the full potential of your B6neo Series charger. Enjoy up to 100W of fast, reliable power wherever you are—at home, at the track, or on the go.
Reliable, effortless, ready anytime.
Wherever there’s AC, the PSA100—your go-to power supply—fuels your B6neo Series with steady 20V/5A power. The built-in XT60 cable means instant connection. No adapters, no fuss.
Replay
Experience the strength of our revolutionary PD Reverse Discharging!6
This groundbreaking feature enables up to 100W of discharging power—allowing you to charge devices like MacBooks and smartphones directly from your battery via PD 3.0.
Whether you’re at the track or on the move, this turns your charger into a portable power hub.
Best of all, this method reduces energy waste, supporting a more sustainable future.
+">
Charging
Charging Time Comparison
* Test data obtained from actual charging on the same LiPo 6S 1300mAh battery.
DC Input
B6V2 powered on DC: charge time is about 30 mins.
B6neo powered on DC: charge time is about 10 mins.
B6neo+ powered on DC: charge time is about 8 mins.
B6neo 2 powered on DC: charge time is about 6.5 mins.
B6neo powered on DC: charge time is about 10 mins.
B6neo+ powered on DC: charge time is about 8 mins.
B6neo 2 powered on DC: charge time is about 6.5 mins.
PD Input
B6neo powered on PD: charge time is about 20 mins.
B6neo+ powered on PD: charge time is about 15 mins.
B6neo 2 powered on PD: charge time is about 20 mins.
B6neo+ powered on PD: charge time is about 15 mins.
B6neo 2 powered on PD: charge time is about 20 mins.
Discharging
Discharging Time Comparison
* Test data obtained from actual discharging on the same LiPo 6S 1300mAh battery.
B6V2 discharge time is about 6.5 hours.
B6neo+ discharging with balance port connected: discharge time is about 2.5 hours.
B6neo 2 discharging with balance port connected: discharge time is about 2 hours.
B6neo discharging with balance port connected: discharge time is about 1.5 hours.
B6neo+ discharging with balance port connected: discharge time is about 2.5 hours.
B6neo 2 discharging with balance port connected: discharge time is about 2 hours.
B6neo discharging with balance port connected: discharge time is about 1.5 hours.
Features
Color
Max.
output
power
output
power
Input
Weight
Display
Versatile 2-in-1:
Check Batteries Easily
When the balance port is connected, B6neo Series is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
Replay
Rectifier circuit,
efficiency multiplied.
efficiency multiplied.
The B6neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
Charge in your language.
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
ColorX:
easy to charge,
easy on the eyes.
easy to charge,
easy on the eyes.
Discover a new ColorX interface introduced by B6neo Series based on simple and textured visuals!
The tailor-designed light cyan and green color scheme are for RC charging. It helps you focus on the setting.
The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones!
Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI.
Life doesn't have to be boring, and neither does charging!
"Hush, easy!
I am charging!"
I am charging!"
Even under full power load, cooling fan operates at a maximum of 48 dB8, which is acceptable to most users.
You can confidently study, fine-tune your pit work, or relax while charging without disruptions or distractions.
We understand the importance of maintaining a peaceful atmosphere, and we have prioritized our charger's quietness.
You have every right to focus on what truly matters to you.
* A sound level of 48 decibels (dB) is considered relatively quiet in our daily life. According to the CDC website, sounds at 48 dB typically don't cause any hearing damage.
Better over time:
upgrade firmware
hassle-Free
upgrade firmware
hassle-Free
Upgrade effortlessly with the free Charger Master app. Receive instant alerts for firmware updates and update via Type-C.
Each upgrade improves compatibility, stability, and performance for a smoother charging experience.
Seeing is Believing
Experience with AR!
Use AR to imagine how the charger will look, feel, and fit on your desktop. Use your Apple devices camera to scan the QR code or open this page in Safari on your iPhone or iPad for an AR preview of B6neo from every angle.
*The shown dimensions may differ from those of the actual product.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
PD/DC
Power Input
PD/DC
Power Input
PD/DC
Power Input
PD
80
DC
200
Charge Power
PD
126
DC
240
Charge Power
PD
80
DC
300
Charge Power
0.2-10.0A
Charge Current
0.3-10A
Charge Current
0.2-15.0A
Charge Current
500mA Max
Balance Current
600mA Max
Balance Current
550mA Max
Balance Current
0.1-2.0A
Discharge Current
0.6A Max
Discharge Current
0.1-2.0A
Discharge Current
29.5
Discharge Power
16
Discharge Power
24
Discharge Power
-
100
Reverse Discharging
-
Li:1-6S
Ni:1-15S
Pb:3S/6S
Battey Type & Cells
Li:1-6S
Ni:2-15S
Pb:3S/6S/12S
Battey Type & Cells
Li:1-6S
Ni:1-15S
Pb:3S/6S
Battey Type & Cells
1
Output Ports
1
Output Ports
1
Output Ports
5.0-27.0V
1.0-10.0A
Digital Power
-
5.0-27.0V
1.0-15.0A
Digital Power
1.77
128x160 Px
LCD Display
1.77
128x160 Px
LCD Display
1.77
128x160 Px
LCD Display
Charger Master
PC Software
Charger Master
PC Software
Charger Master
PC Software
70x50x31mm
Size
70x50x31mm
Size
70x50x31mm
Size
82g
Weight
82g
Weight
82g
Weight
- B6neo+ does not support digital power supplies;
- SkyRC Lab Test: Maximum output power via DC input is 300W. Please refer to the specifications for details on different models.
- SkyRC Lab Test: Maximum charging current is 15A. Please refer to the specifications for details on different models.
- SkyRC Lab Test: B6neo+ supports PD 3.1 protocol, while B6neo and B6neo 2 support PD 3.0. Please refer to the specifications for details on different models.
- SkyRC Lab Test: Maximum discharge power is 29.5W. Please refer to the specifications for details on different models.
- Reverse charging is supported only by B6neo+
- SkyRC Lab Test: Maximum output power via PD input is 126W. Please refer to the specifications for details on different models.
- 48 decibels (dB) is considered relatively quiet in daily life. According to the CDC website, sounds at 48 dB typically do not cause any hearing damage.
- Warning: Do not connect XT60 and USB simultaneously on the B6neo+.
Specifications

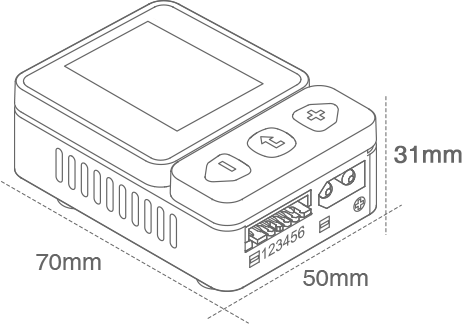

Size and Weight
Shell material: PC-ABS V0
Size: 70*50*31mm
Weight: 82g
Size: 70*50*31mm
Weight: 82g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Power
B6neo: DC:10-28.0V PD3.0/QC: 12-20V
B6neo 2：DC: 7-28.0V PD3.0/QC: 12-20V
B6neo+: DC:5-30.0V PD3.0/3.1: 5-28V
Charger power:
B6neo: DC:200W PD: Max. 80W
B6neo+: DC:240W PD: Max. 126W
B6neo 2: DC:300W PD: Max. 80W
Discharge power:
B6neo: Max. 29.5W based on 6S(4.2V/S)
B6neo+: Max. 16W based on 6S(4.2V/S)
B6neo 2: Max. 24W based on 6S(4.2V/S)
Charger power:
B6neo: DC:200W PD: Max. 80W
B6neo+: DC:240W PD: Max. 126W
B6neo 2: DC:300W PD: Max. 80W
Discharge power:
B6neo: Max. 29.5W based on 6S(4.2V/S)
B6neo+: Max. 16W based on 6S(4.2V/S)
B6neo 2: Max. 24W based on 6S(4.2V/S)
Battery
B6neo/B6neo 2
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
B6neo+
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S
Charge and Discharge
Charging current
B6neo: 0.2-10.0A
B6neo+: 0.3-10.0A
B6neo 2：0.2-15.0A
B6neo+: 0.3-10.0A
B6neo 2：0.2-15.0A
Discharge current
B6neo/B6neo 2: 0.1-2.0A
B6neo+: 0.6A Max
B6neo+: 0.6A Max
Balance current
B6neo: Max.500mA
B6neo+: Max.600mA
B6neo 2: Max.550mA
B6neo+: Max.600mA
B6neo 2: Max.550mA
Operation
LiPo/LiFe/LiIon/LiHV: Balance charge, Charge, Discharge, Storage, Reverse Discharge6
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge, Reverse Discharge6
Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge, Reverse Discharge6
